Kawasaki FS06

Awaiting more stock

Information
Specifications

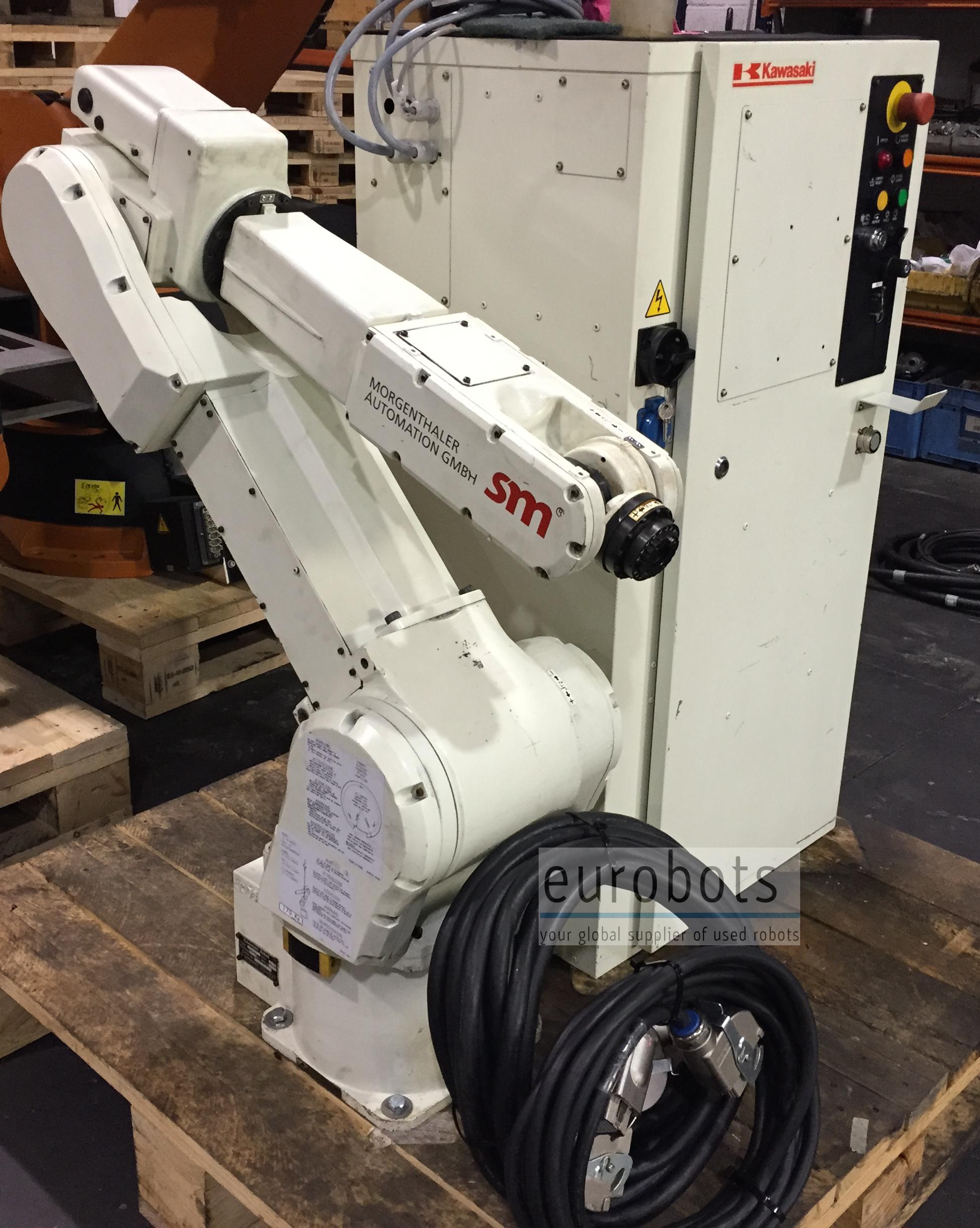

Robot Kawasaki FS 06 Series. These robots are designed for medium payload applications requiring a flexible work envelope.

The slim arm design, simplified vertical alignment and robot pedestal mounted joint 1 axis/motor allow the F Series robots to require less plant floor space while having an extremely large work envelope.

The F Series robots provide a great variety of options for the customer, having different arm combinations for various reaches and payloads.

Robot Info:

Maximum Load of Robot: 6 Kg.
Maximum Reach Horizontal: 1102mm.
Repeatability: 0,05mm.
Controller: C

Robot Motion Speed:

Axis 1: 240º/s
Axis 2: 240º/s
Axis 3: 250º/s
Axis 4: 430º/s
Axis 5: 430º/s
Axis 6: 720º/s

Robot Applications:

Arc welding
Handling of parts

Applications

Arc welding , Spotwelding , Press tending , Loading and unloading of parts , Handling of parts , Polishing , Measurement , Assembly of parts

Pictures

Diagrams
